Product Name: tungsten carbide flats Place of Origin: Hunan, China Brand Name: Old Craftsman | Certification: ISO Model Number: 320*6*T,320*8*T,320*10*T,320*12*T and so on Port: Any ports in China |
Payment & Shipping Terms
Minimum Order Quantity: 10KG Price: USD55/KG Packaging Details: Carton Boxes + Plywood Pallet | Delivery Time: 5-30 Days after order confirmation Payment Terms: L/C, T/T,O/A Production Capacity: 5 Ton per Month |

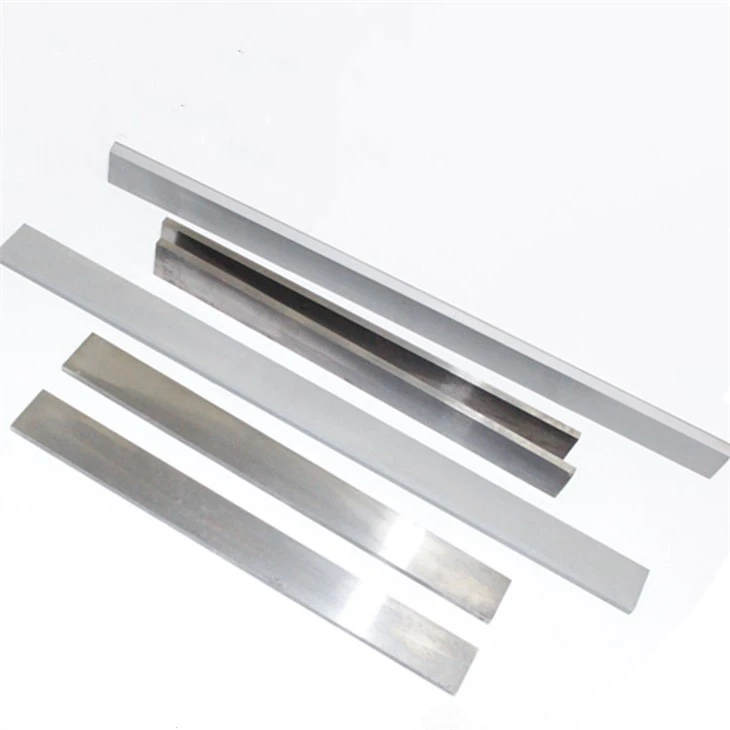

Carbide Strips Characteristics
1. 100% raw material. Whenever you come to visit our company, there is only one brand virgin material in our factory warehouse always.
2. We have 100T, 200T automatical pressing for carbide strip.
3. All goods are HIP sintered in order to guarantee the stable and uniform quality for each batch.
4. We have CNC grinding, can meet any of your flatness requirement.
5. Various sizes and full types available
6. Reasonable price, Fast delivery time
7. OEM Customized(professional technical support)
8. ISO 9001 Certification
Application
Carbide strips have the characteristics of high red hardness, good weldability, high hardness, and high wear resistance. They are mainly used in the production and processing of solid wood, density board, gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel, PCB, brake material. Carbide strips of suitable material should be selected according to the application.
Grade Information
Grade Introduction for Carbide Strips for Cutting Tool | ||||
Grade | Equivalent to | Hardness | Bending strength | Density |
ISO | (HRA)≥ | (N/mm2)≥ | (g/cm3)≥ | - |
YG6X | K10 | 91.3 | 1580 | 14.8-15.1 |
YG6A | K05-K10 | 14.9 | 1860 | 92 |
YG6 | K20 | 89.8 | 1700 | 14.7-15.1 |
YN8 | K30/K20 | 90.5 | 1880 | 14.5-14.9 |
YG8 | K30 | 89.5 | 1890 | 14.6-14.9 |
YG8C | K30 | 88.3 | 2100 | 14.5-14.9 |
YG15 | - | 87.3 | 2250 | 13.9-14.2 |
YG10X | K35 | 89.5 | 2200 | 14.3-14.7 |
YS2T | M30/K30 | 91.8 | 3600 | 14.3-14.6 |
yL10.2 | - | 91.2 - 91.8 | 3600 | 14.4-14.6 |
YG11C | K40 | 86.8 | 2300 | 14.1-14.5 |
Machines we have for carbide strips
100T automatical pressing
200T automatical pressing
Different Types of carbide strip
