Detail Information
Product Name | carbide thin strips for cutting tool | Key Words | carbide strips |
Material | 100% Virgin material | Process Usage | Metal-Cutting CNC Machine Tools |
Usage | Wood Cutters, Tobacco Cutting, Metal Cutting | Application | Metal Cutting Machine, Metal Processing Machinery Parts |
Specification | Customized | Surface | Polished or unpolished |
It can be supplied at customers 'requests

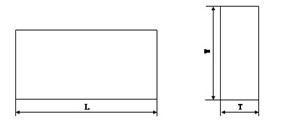

1.Type specifications：T×W×L
T:1.0-20.00 W:2.0-40.00 L :40-330
2. Type specifications：T×W×L～αo
T:1.0-5.00 W:2.5-30.00 L :40-330 αo : 0～35o
Application
carbide thin strips for cutting tool are high hardness, wear-resistance, and resistance to bending. They're widely used in cutting tool, crusher, wear parts, molding base and other fields.
Grade Information
Grade Introduction for carbide thin strips for cutting tool | ||||
Grade | Equivalent to | Hardness | Bending strength | Density |
ISO | (HRA)≥ | (N/mm2)≥ | (g/cm3)≥ | - |
YG6X | K10 | 91.3 | 1580 | 14.8-15.1 |
YG6A | K05-K10 | 14.9 | 1860 | 92 |
YG6 | K20 | 89.8 | 1700 | 14.7-15.1 |
YN8 | K30/K20 | 90.5 | 1880 | 14.5-14.9 |
YG8 | K30 | 89.5 | 1890 | 14.6-14.9 |
YG8C | K30 | 88.3 | 2100 | 14.5-14.9 |
YG15 | - | 87.3 | 2250 | 13.9-14.2 |
YG10X | K35 | 89.5 | 2200 | 14.3-14.7 |
YS2T | M30/K30 | 91.8 | 3600 | 14.3-14.6 |
L10.2 | - | 91.2 - 91.8 | 3600 | 14.4-14.6 |
YG11C | K40 | 86.8 | 2300 | 14.1-14.5 |
Production Process
Certification
Company Information
● In 2007, Zhuzhou ZZ Import and Export Co., Ltd. (ZZ HARDMETAL) was established: Focus on the export of tungsten carbide products.
● In 2011, the Brazilian Branch (ZZ Comércio Importação e Exportação Ltda.) was established: To provide Brazilian customers with faster and better service.
● In 2014, Zhuzhou Old Craftsman Precision Alloy Co., Ltd. was established: Focus on tungsten carbide production, precision machining, brazing. Excellent talents, new equipments, the spirit of craftsmen into products!
