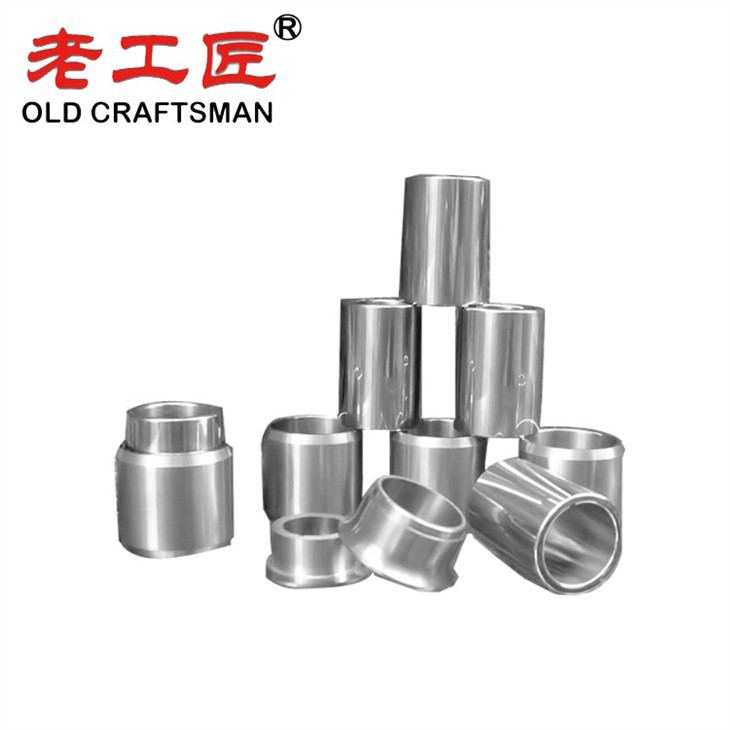

Tungsten Carbide Bushings
Company introduction:
We are a professional tungsten carbide prodcut manufacturers in China. We can provide the best carbide bushes for sales and competitive price. If you are looking for high quality tungsten carbide supplier, we are a good choice. Contact us to get the price of Carbide bushes, carbide drawing dies, carbide guiding dies, press molds. Check below details, more information, please contact us.
Product Introduction
Carbide 6 hole bushes is a customized products. In the beginning we sintered the bushes without holes and then machine out the holes. We found it is not a cost-effective way to produce this product. After engineers discussion, we adopt the semi-machining. We press the bushes and semi-machining out the 6 holes, then sinter out the goods directly. Using the CNC machining center, controlling the sizes exactly, no crack, no deform.
Production Advantages
1. Exact size control, no need after-grinding and machining.
2. Carbide grade is chosen according to customer detailed requirement on the hardness and bending strength.
3. Using UG to calculate the pressing size and weight, control the size exactly, no need more grinding cost
4. Full set of testing equipment controls the quality on each process, and final inspection before shipment to make sure 100% qualification.
Application
It is mainly wear-resistant and preservative for machine part (Such as industrial oilfield，chemical industry）
Notes:the price will be change with the raw materials . If you want to know more information, please inform your contact information, we will contact you as soon as possible
Grade infmration
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(Mpa) |
| YG9 | 14.8 | 89.50 | 2200 |
Product Show

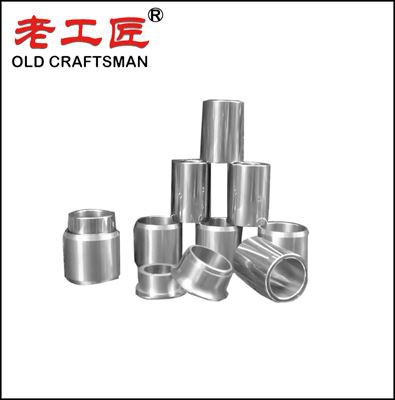

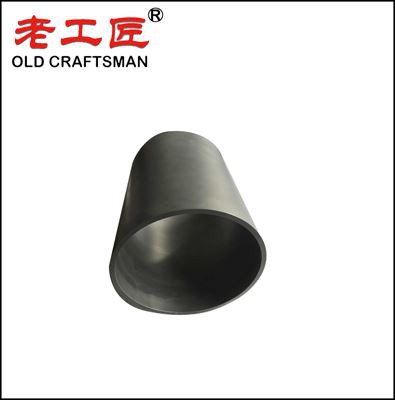

| carbide bushing | carbide press fit bushings |
Production process
WC and CO-ball milling -vaccum drying -Granulating-Bidrectional automatic pressing -HIP Sintering and HIP processing -physical and chemical testing -post processing -final inpection packing and delivery.
Product packaging
FAQ
Q: Are customized products your company strong points?
A: Yes, we have 2 CNC machining centers for semi-machining, the engineer are in this field for more than 20 years.
Q: What is your MOQ?
A: depends on the exact products.
Q: can you design the products according to our detailed uage?
A: Yes. Our engineer have rich onsite experience.
Q: If we have special requirement on the carbide grade, can you do it?
A: Yes, we can. We have 1L, 10L powder ball mill tank for doing experiments.
